Brief Introduction - Concrete Mixer With Pump
The Concrete Mixer With Pump is composed of the concrete mixer, the pump body and the delivery pipe. It is a machine that uses pressure to continuously transport concrete along pipelines when mixed by concrete mixer. It is mainly used in housing construction, bridge and tunnel construction. It is mainly divided into diesel engine concrete mixer pump and electric concrete mixer pump.
2. Mixing System
2.1 The concrete mixer utilizes the mixer drum to mixing the aggregate (sand/ cement/ gravels), powered by hydraulic motor.
2.2 Through the lifting hopper to feeding the aggregate into mixer, the mixing and discharging by the mixer drum rotation.
2.3 Once mixing the wet concrete per batch, the mixer discharge the concrete into the pump hopper again.
2.4 The gravels or the crushed stone percentage can not beyond the 40% in total mixed concrete, so that keep the wet concrete fluidity.
3. Electric Control System
3.1 Compared with domestic product, the electric control system is simplest, the element quantity is fewest and its reliability is highest.
3.2 The wire remote equipment is convenient for operation far away.
3.3 Adopting proximity switch in hydraulic cylinder can realize changing direction with non-touch, which ensures that the direction can be changed reliably.
4. Mechanical System
4.1 The design of hopper and S valve and so on adopt I-DEAS software to calculate, the hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.
4.2 The agitator have unique form, which separates the hydraulic motor from agitator bearing pedestal.At the same time, adopting large displacement motor ensures that the agitator moment is big enough.
4.3 Make sure the pumping is good and decline the phenomenon of pipe jam, the spectacles wear plate and cutting ring should be used in lower abrasion. The spectacles wear plate and cutting ring use high wear material, making the components’ life prolonged greatly.
5. Lubrication System
The hydraulic circuit will take high oil into double distributor,and then the lubricating part can obtain hydraulic oil.It ensures the lubrication of the concrete cylinder’s piston and other parts and prolongs the life of piston and other sealing.
6. Cooling System
The radiator equipment makes the working oil temperature of hydraulic system below 70℃ and makes the machine in normal status.

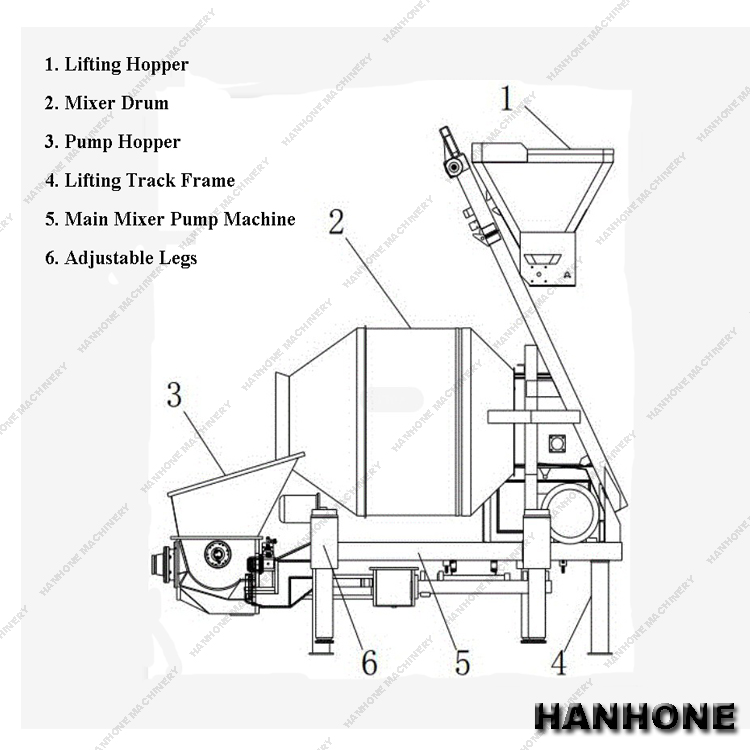

Main Structure - Concrete Mixer With Pump

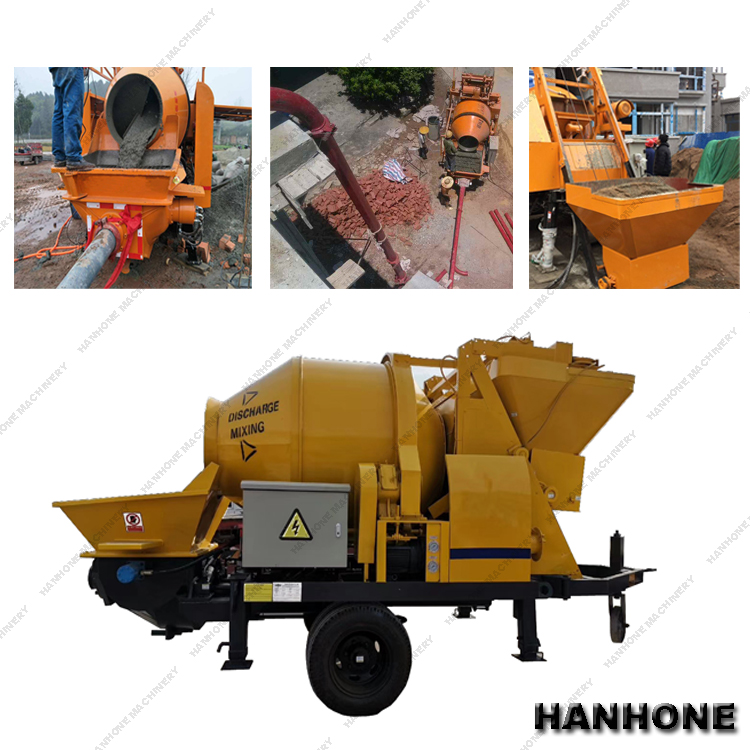

More Productions Details - Concrete Mixer With Pump
