Supply Ability
Packaging & delivery
| Quantity(sets) | 1 - 100 | >100 |
| Lead time (days) | 15 | To be negotiated |
Products Description

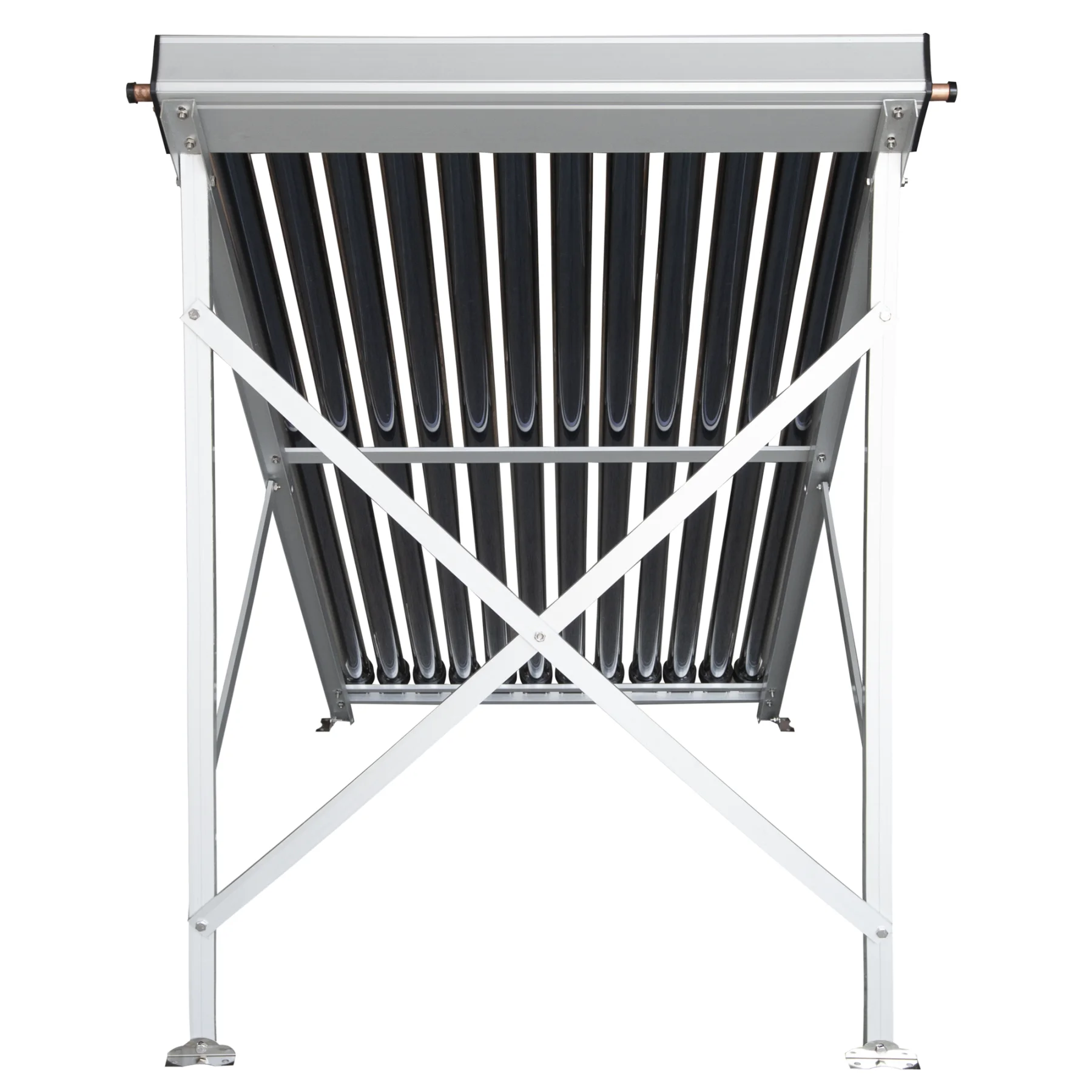

Item Name | Solar collector | ||||||||
Manifold Casing Material | Aluminium (grade 3A21) | ||||||||
Frame Material | 6063 Aluminum Alloy（1.8mm） | ||||||||
Header Pipe Material | 99.93% pure Copper & lead free 45% silver brazing | ||||||||
Heat pipe Spec | Thickness:0.6mm,14mm condensor | ||||||||
Fins around heat pipe | Double round aluminum 1.68m | ||||||||
Insulation | Compressed Glass Wool - K = 0.041W/mK | ||||||||
Rubber Seals and Rings | HTV grade silicone rubber | ||||||||
Optimal installation angle | 20-70° Vertical, -5° to +5° Horizontal | ||||||||
Maximum Operating Pressure | 8 Bar-16psi | ||||||||
Optimal flow rate | 0.1L/min/tube - 0.026G/min/tube | ||||||||
Inlet outlet | 3/4" or 1” or 1/2“ optional | ||||||||
Performance Data | Conversion Factor: h° = 0.70 | ||||||||
Loss Coefficients: a1 = 1.52, a2 = 0.0085 | |||||||||
Tubes | Tube Structure | All-glass double-tube co-axial stricture | |||||||
Glass material | High borosilicate 3.3 glass | ||||||||
Tube size | Φ 58*1800mm | ||||||||
Outer tube diameter & thickness | Φ 58±0.7mm; Thickness 1.6mm | ||||||||
Inner tube diameter & thickness | Φ 47±0.7mm; Thickness 1.6mm | ||||||||
Coating Material: | Cu / SS-AIN (HSS-AIN (L) | ||||||||
Method sediment: | Tri-element magnetron sputtering coating | ||||||||
Absorbency: | 0.93 ~ 0.96 (AM1.5) | ||||||||
Degree of vacuum (Pa) | P ≦ 5.0 × 10 -3 (Pa) | ||||||||
Glass tube transmittance: | T: ≥0.89 (AM1.5 ISO9806-1: 1994) | ||||||||
The stagnation parameters: | Y: 240 ℃ ~ 260M / KW | ||||||||
The average heat loss: | ULT: ≦ 0.60W / (M2▪ ℃) | ||||||||
Viva la resistance: | 25mm | ||||||||
Distance from tube to tube(mm) | 75mm | ||||||||
Pressure-support: | 0.6Mpa | ||||||||

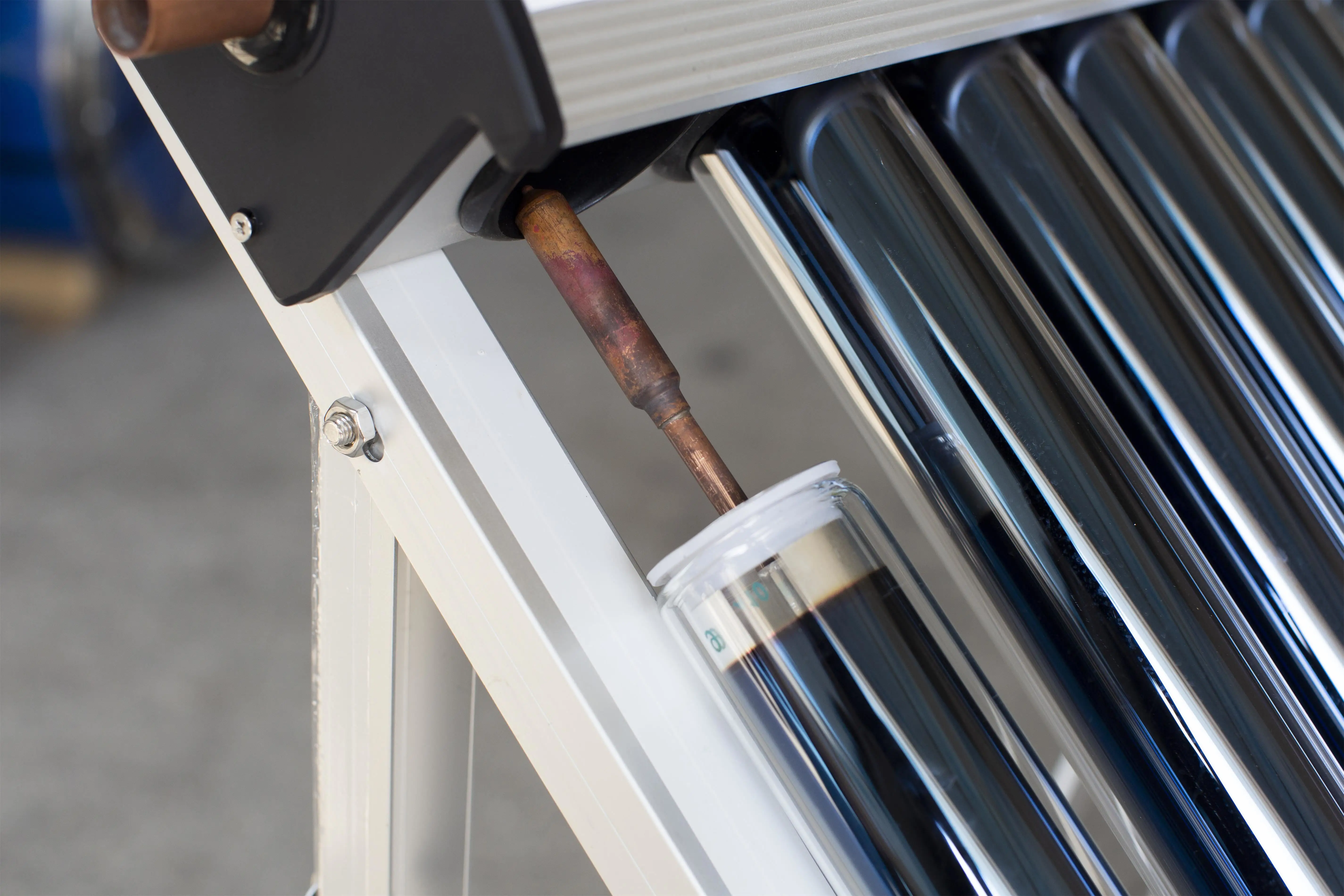

Heat Pipe | Material | TU1 copper | |||||||
Condenser Size | Φ14mm diameter, 90mm length | ||||||||
Body Size | Φ8mm diameter | ||||||||
Heat-transfer-fins | premium complete type | ||||||||
Max. Working Temp | -37~250℃ | ||||||||
Start-up Temp | <=30℃ | ||||||||
Maximum operation pressure | 12 bar (175 psi) | ||||||||
Daily efficiency | 55% | ||||||||

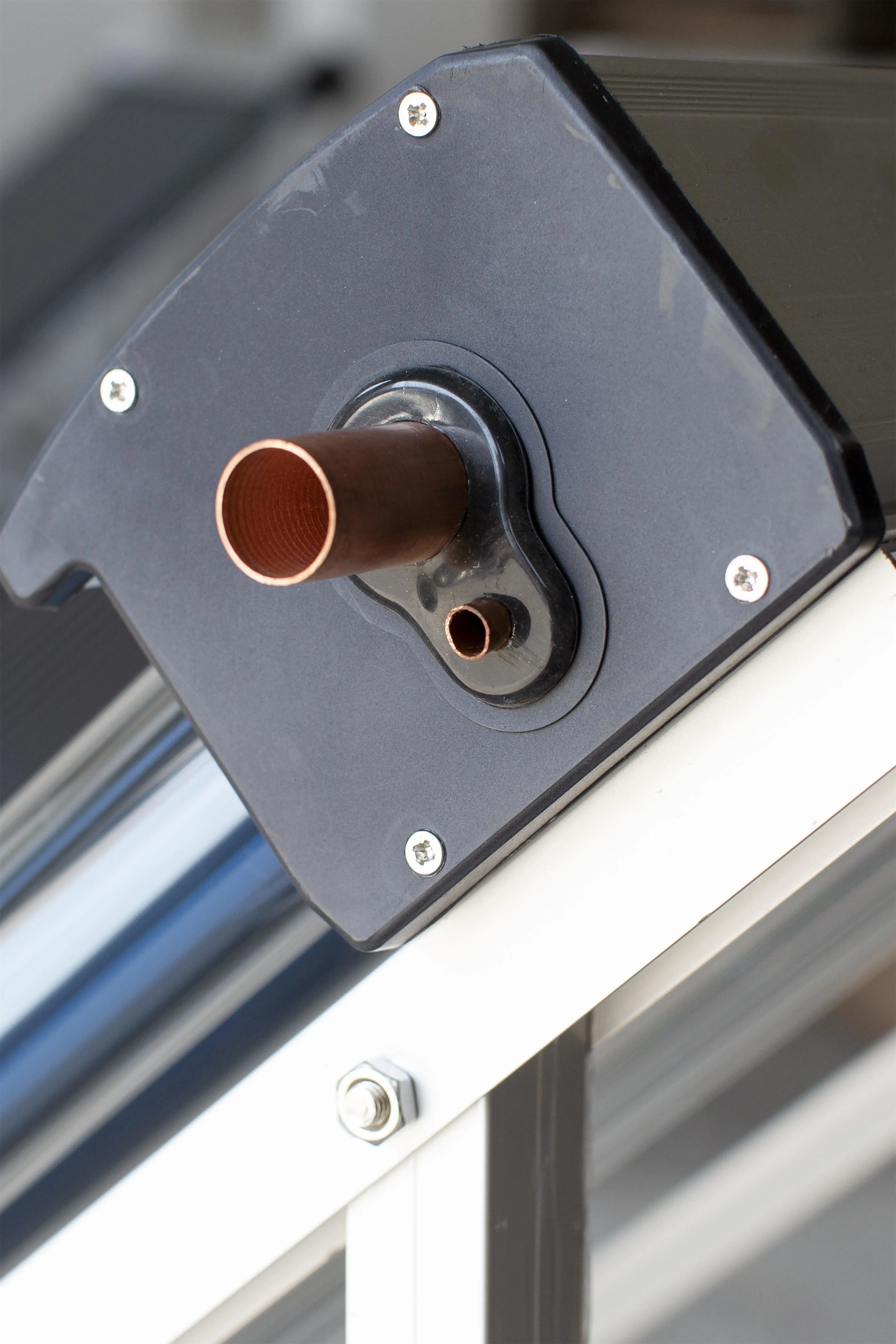

Product Details Of Solar Water Heater
